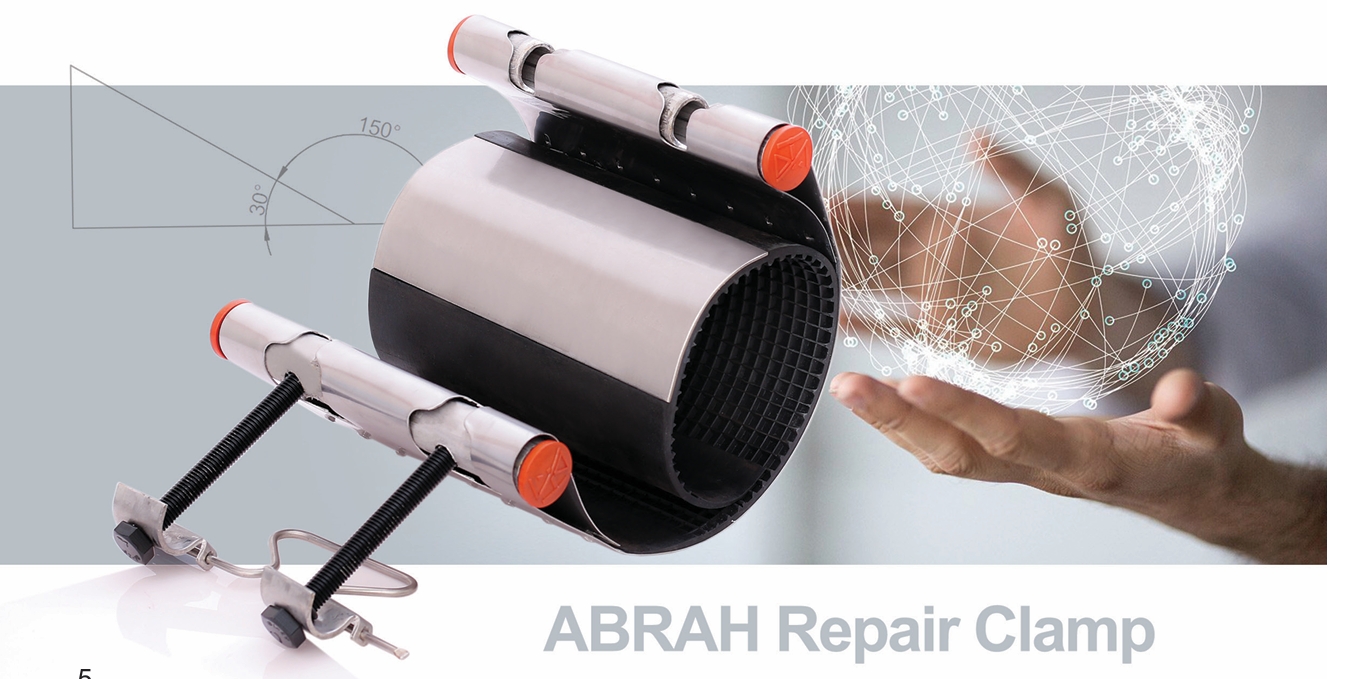

ARC Clamp
Description
The main technical advantage of Abrah Repair Clamps comparing to the previous generation, is substituting the welding by other types of cold joints.
Application
Pipe Coupling
Repair of Broken Pipe
Sealing Longitudinal Cracks
Repair of Tapping Holes
Coupling of Axial Misaligned Pipes
Coupling of Angular Misaligned Pipes
Sealing of Corroded Parts
Model

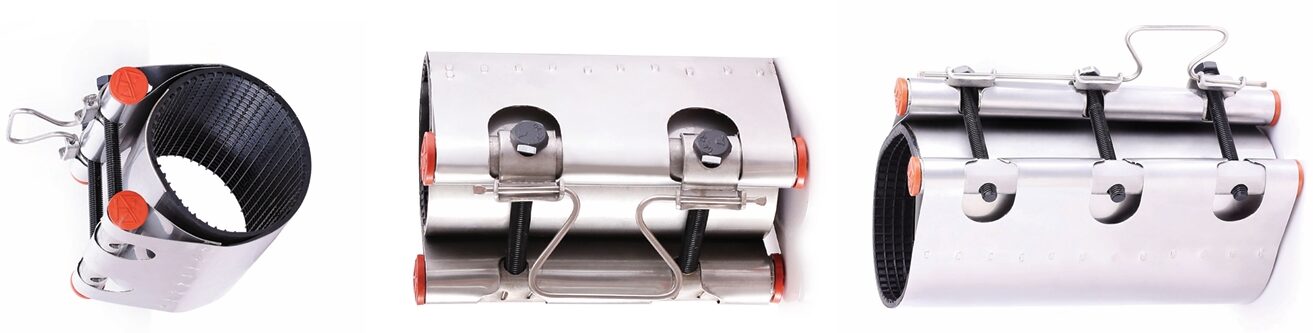

ARC1
Description
Designed for versatility and durability, this one-piece clamp is available in a wide range of diameters from 43 mm to 336 mm to accommodate various pipe sizes and applications. It is engineered to perform reliably in operating environments with temperatures ranging from -5°C to +40°C, making it suitable for both indoor and outdoor use.
Key Features
Diameter range: 43 mm – 336 mm
Temperature resistance: –5°C to +40°C
Single-body design for enhanced strength and easy installation
Ideal for plumbing, industrial, and water treatment applications
Model
ACR2
Description
Designed for versatility and durability, this one-piece clamp is available in a wide range of diameters from 104 mm to 698 mm to accommodate various pipe sizes and applications. It is engineered to perform reliably in operating environments with temperatures ranging from -5°C to +40°C, making it suitable for both indoor and outdoor use.
Key Features
-Any type of size and range could be produced based on customer order.
-Clamp length depends on damage type, pipe material, pressure and considering cost items and the minimum length is equal to pipe diameter.
-The minimum length of clamp for poly ethylene pipes should be 50% more than pipe diameter.
-The maximum longitudinal gap between two pipes is 10mm.
-The maximum offset is 3mm.
-The maximum angular misalignment is 2 degree.
-Different pipe diameters are not possible.
-Test pressure = 1.5*PN
-The maximum working pressure for gas is 5 bar.
